COMPLETE HIGH-END 29ER WHEELBUILDING KIT
This kit combines a lightweight modern 29er carbon rim with one of DT Swiss' premium MTB hubsets.

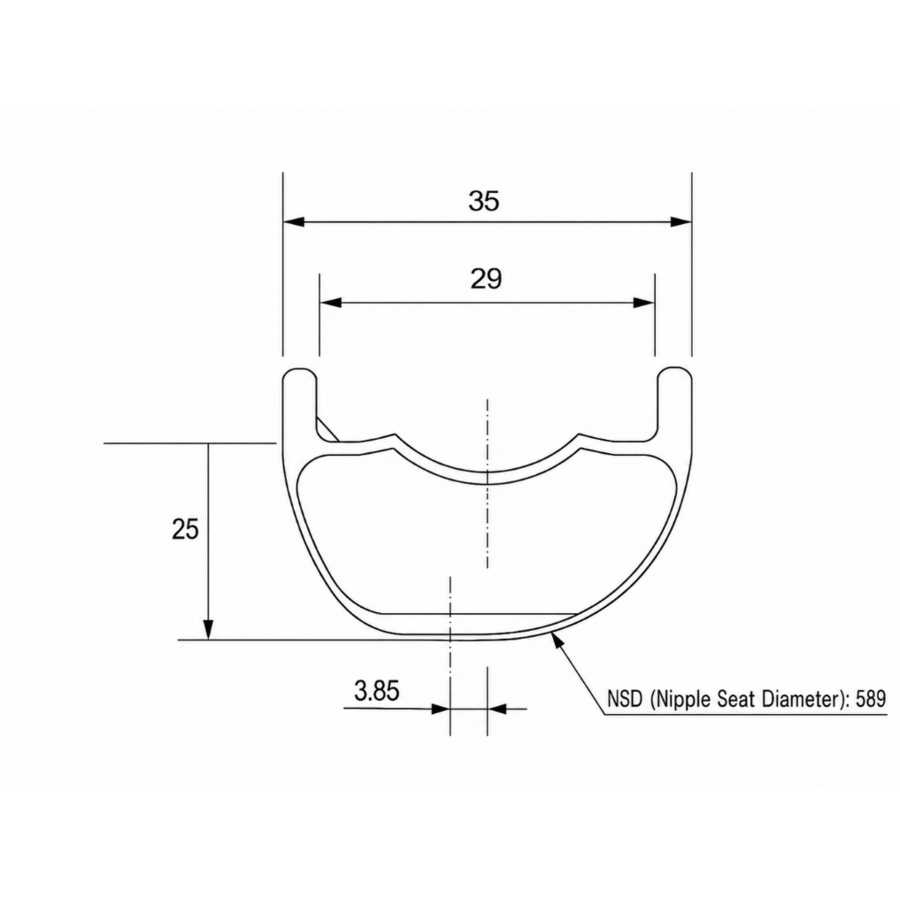

The H25-W35 rim is only 25 mm deep and weighs approximately 380 grams. Its 35 mm external and 29 mm internal width make it ideal for modern XC, marathon and lightweight trail tyres.
An asymmetric 3.85 mm offset helps improve the balance in spoke bracing angles and spoke tension between both sides of the wheel.
Combined with DT Swiss 240 Boost Straight Pull hubs, Alpina Ultralite Aero spokes and lightweight aluminium ABT nipples, the complete wheelset is expected to weigh approximately 1,350 grams.
KEY FEATURES
- Complete DIY 29er MTB wheelbuilding kit
- Approximately 1,350 g built weight
- H25-W35 carbon rims
- Approx. 380 g per rim
- 25 mm rim depth
- 35 mm external width
- 29 mm internal width
- Hookless
- Tubeless Ready
- Asymmetric construction
- 3.85 mm offset
- 28H front and rear
- DT Swiss 240 Boost Straight Pull hubs
- Ratchet EXP 36
- Alpina Ultralite Aero Straight Pull spokes
- 56 spokes total
- Alpina Double Square aluminium ABT nipples
- Pre-calculated spoke lengths

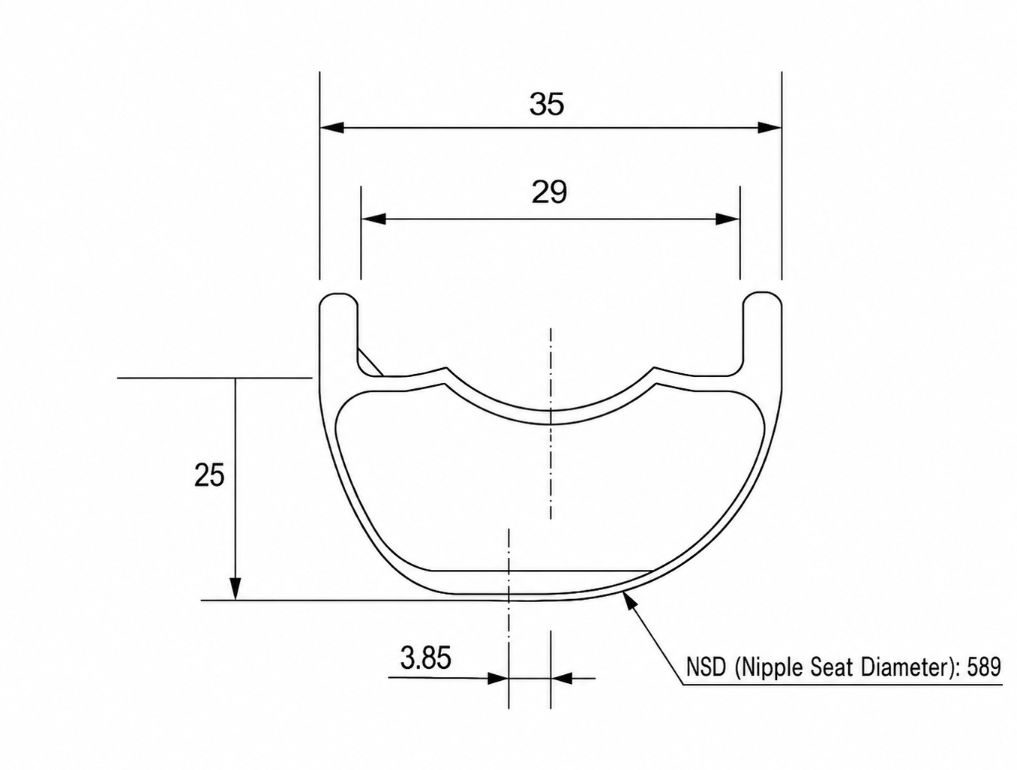

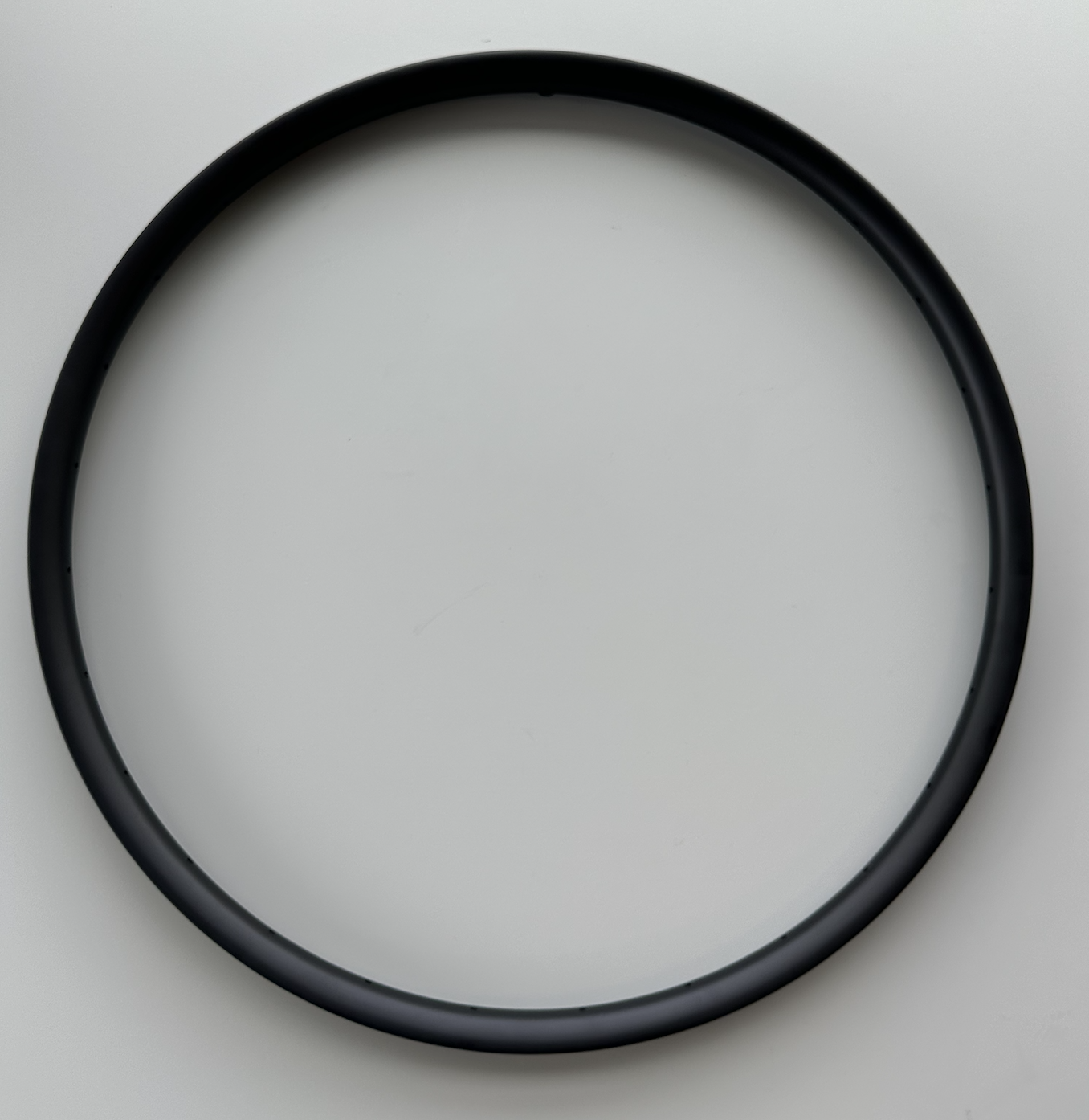

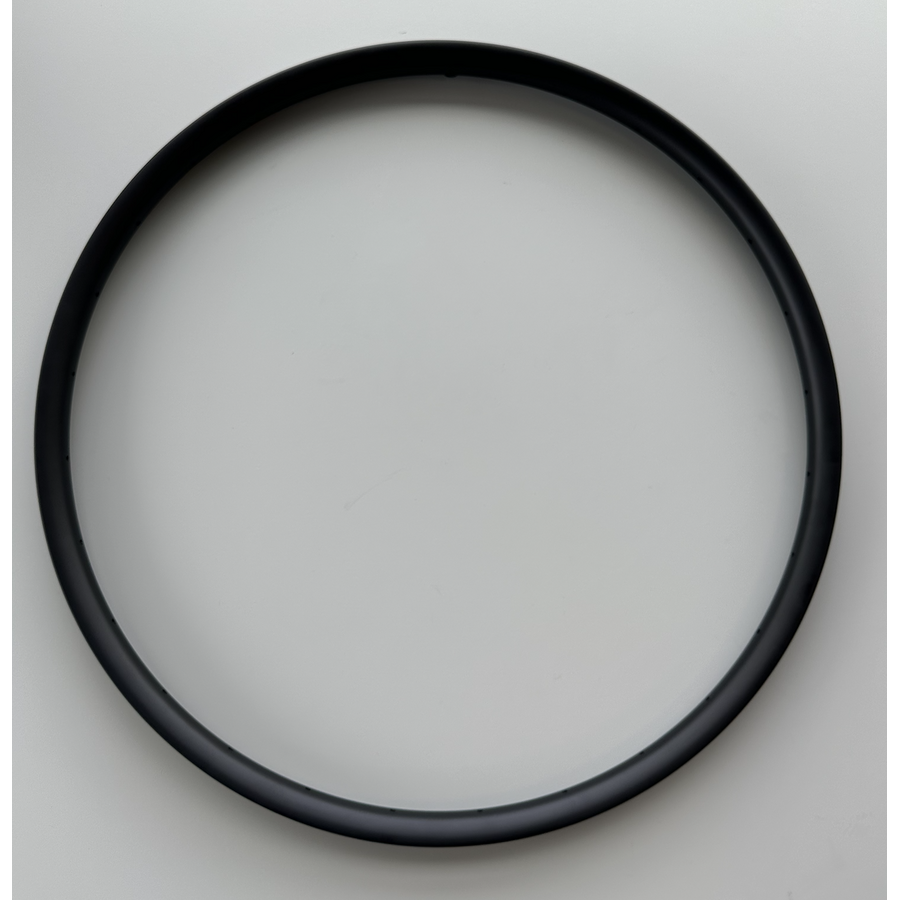

H25-W35 29ER CARBON RIMS
Specifications:
- 29"
- Carbon
- 25 mm deep
- 35 mm external width
- 29 mm internal width
- Approx. 380 g ±15 g
- 28H
- Hookless
- Tubeless Ready
- Asymmetric
- 3.85 mm offset
- Matt Black
- NSD: 589 mm
- Maximum spoke tension: 130 kgf
The low rim depth and low rotating mass make this rim especially suitable for XC racing, marathon riding and lightweight trail applications.

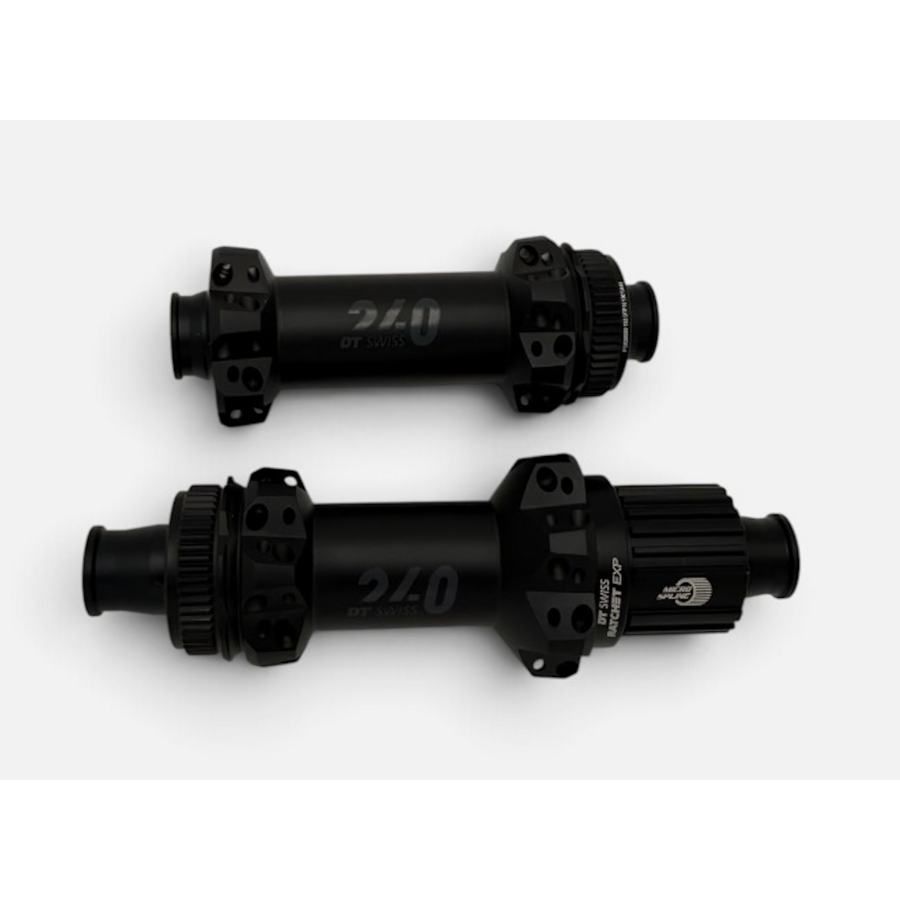

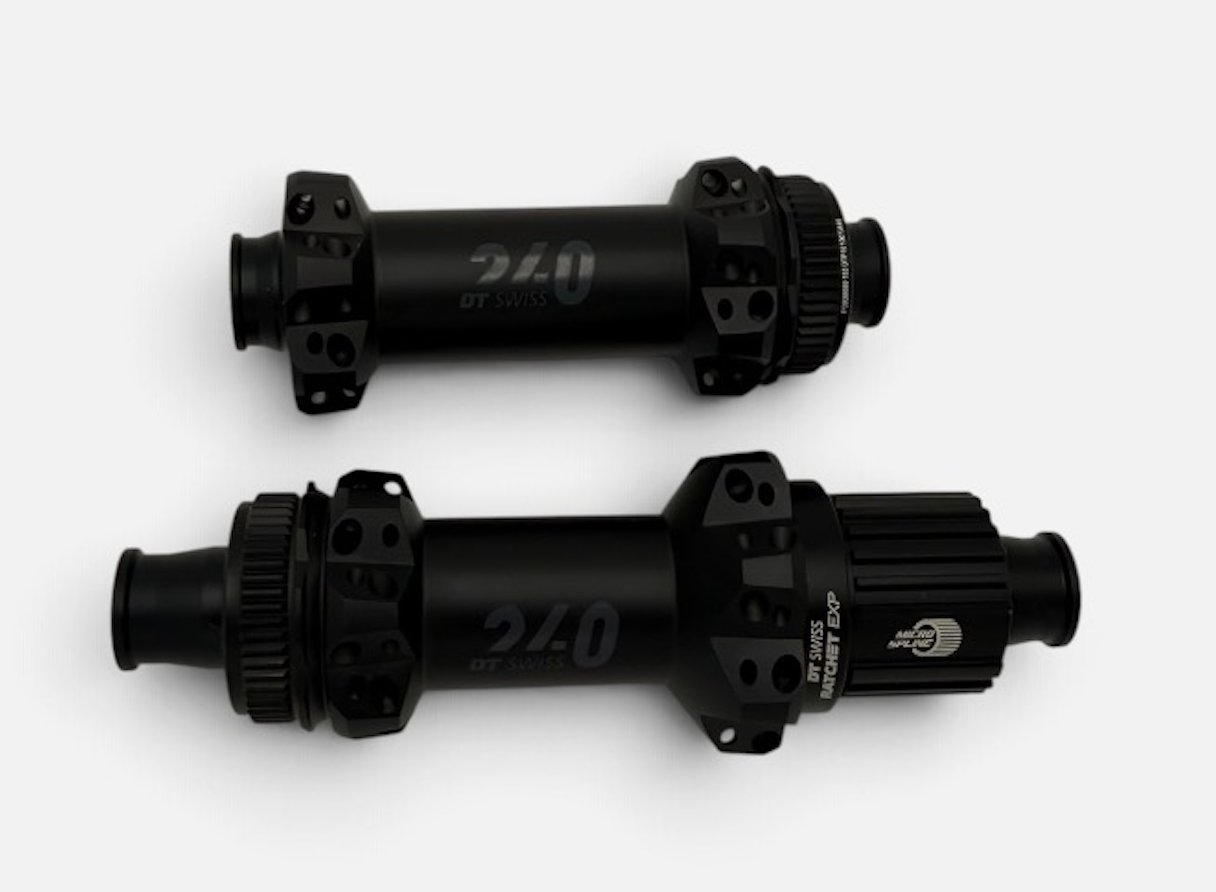

DT SWISS 240 BOOST STRAIGHT PULL HUBS
The DT Swiss 240 Boost is one of DT Swiss' premium MTB hub platforms.
For the 28H Center Lock configuration, DT Swiss specifies:
- Front hub: 110 g
- Rear Micro Spline hub: 207 g
- Front: 15x110 mm Boost
- Rear: 12x148 mm Boost
- Ratchet EXP 36
- 28H Straight Pull
Depending on the selected version, Shimano Micro Spline and SRAM XD options are available, with Center Lock or 6-bolt variants represented in the Wheel-Parts range.

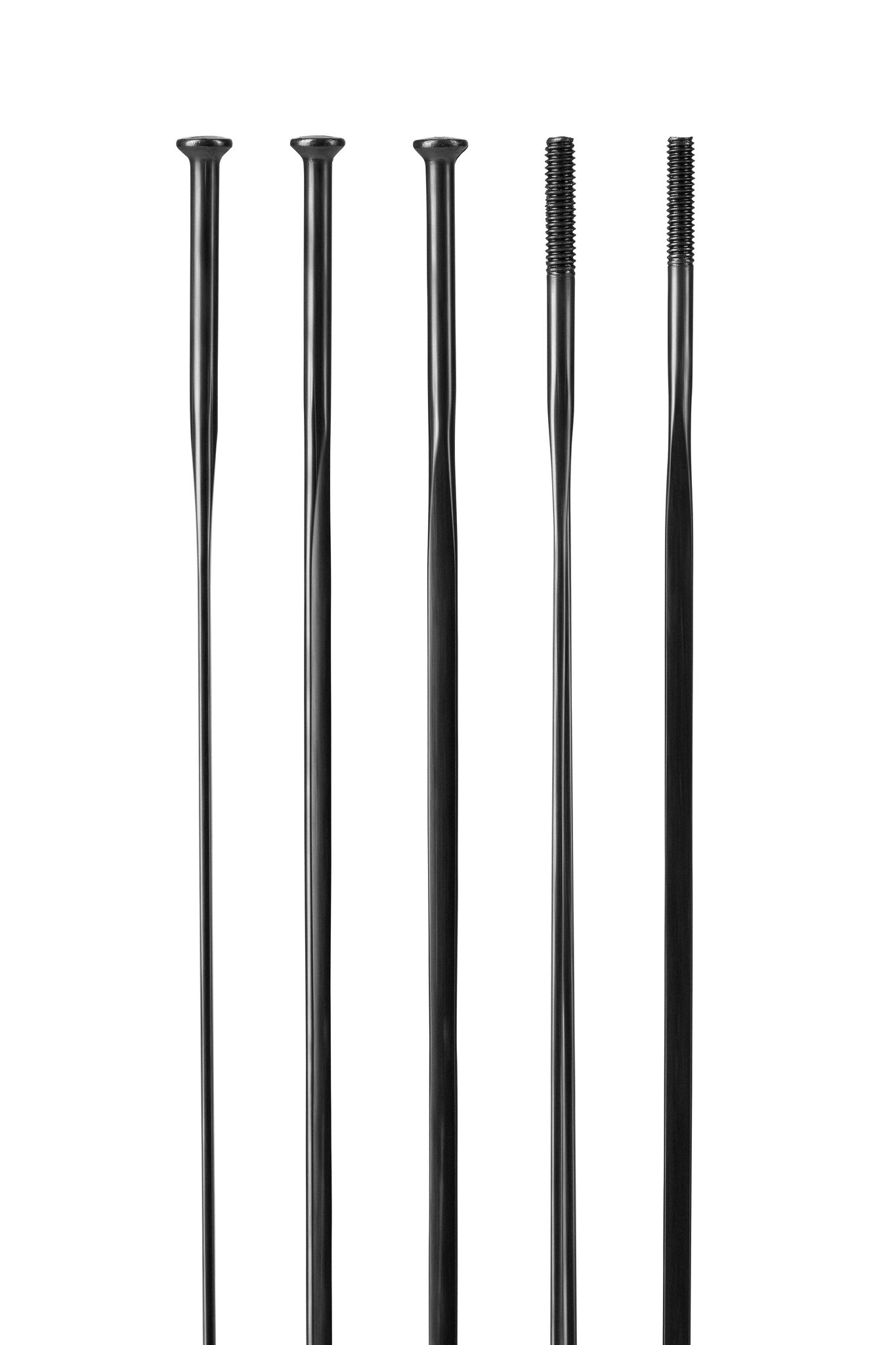

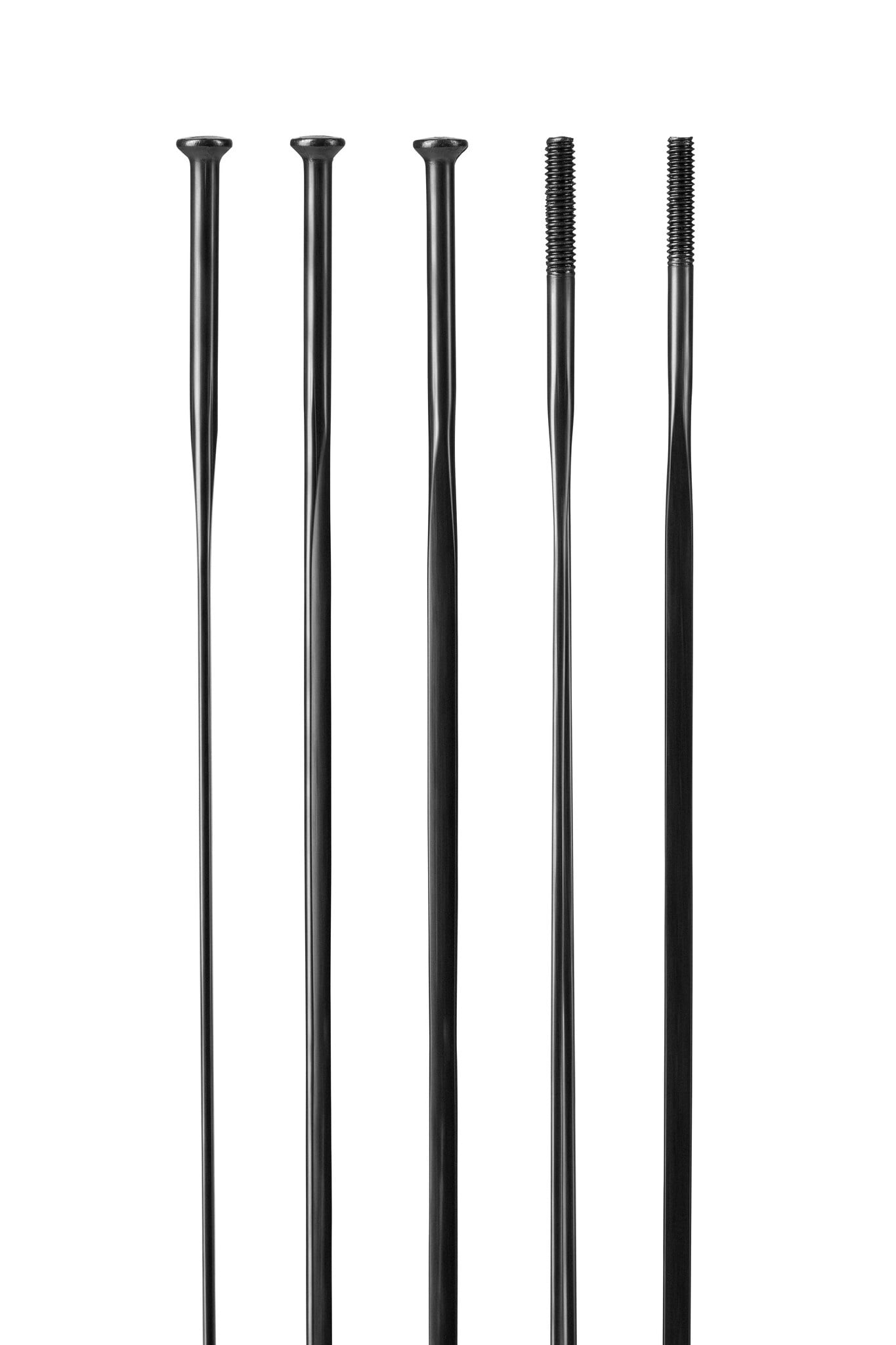

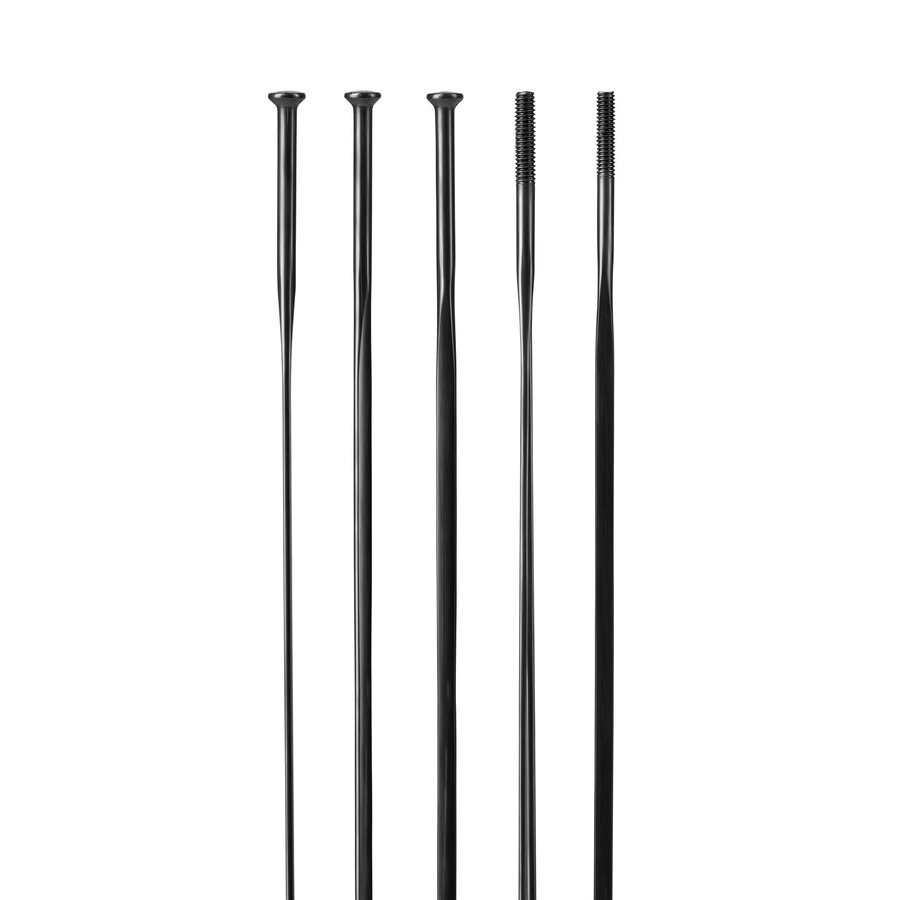

ALPINA ULTRALITE AERO STRAIGHT PULL SPOKES
Spoke profile:
2.0 | 0.9–2.3 | 2.0 mm
Features:
- Straight Pull
- Bladed aero profile
- Approx. 4.2 g at 260 mm
- High-end lightweight construction
- 56 spokes total
PRE-CALCULATED SPOKE LENGTHS
Front wheel
Left:
Right:
Total front:
Rear wheel
Left:
Right:
Total rear:
Complete wheelset:
Because the spoke lengths have already been calculated for this rim and hub combination, the wheelbuilder does not need to calculate the complete geometry again.

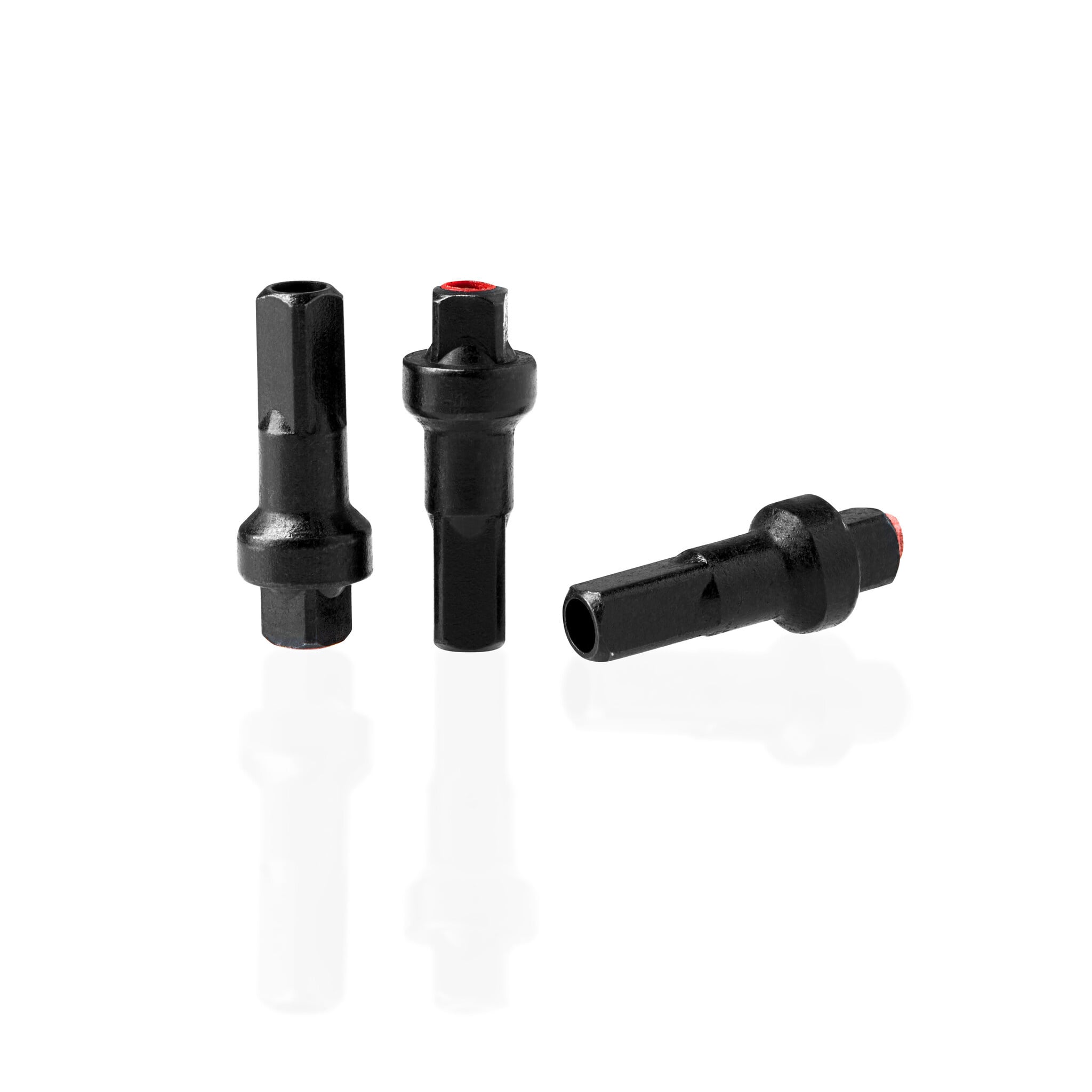

ALPINA DOUBLE SQUARE ABT NIPPLES
The kit includes black Alpina aluminium Double Square nipples with ABT Locking.
Features:
- Aluminium
- Black
- 14G
- Double Square
- Self-locking ABT system

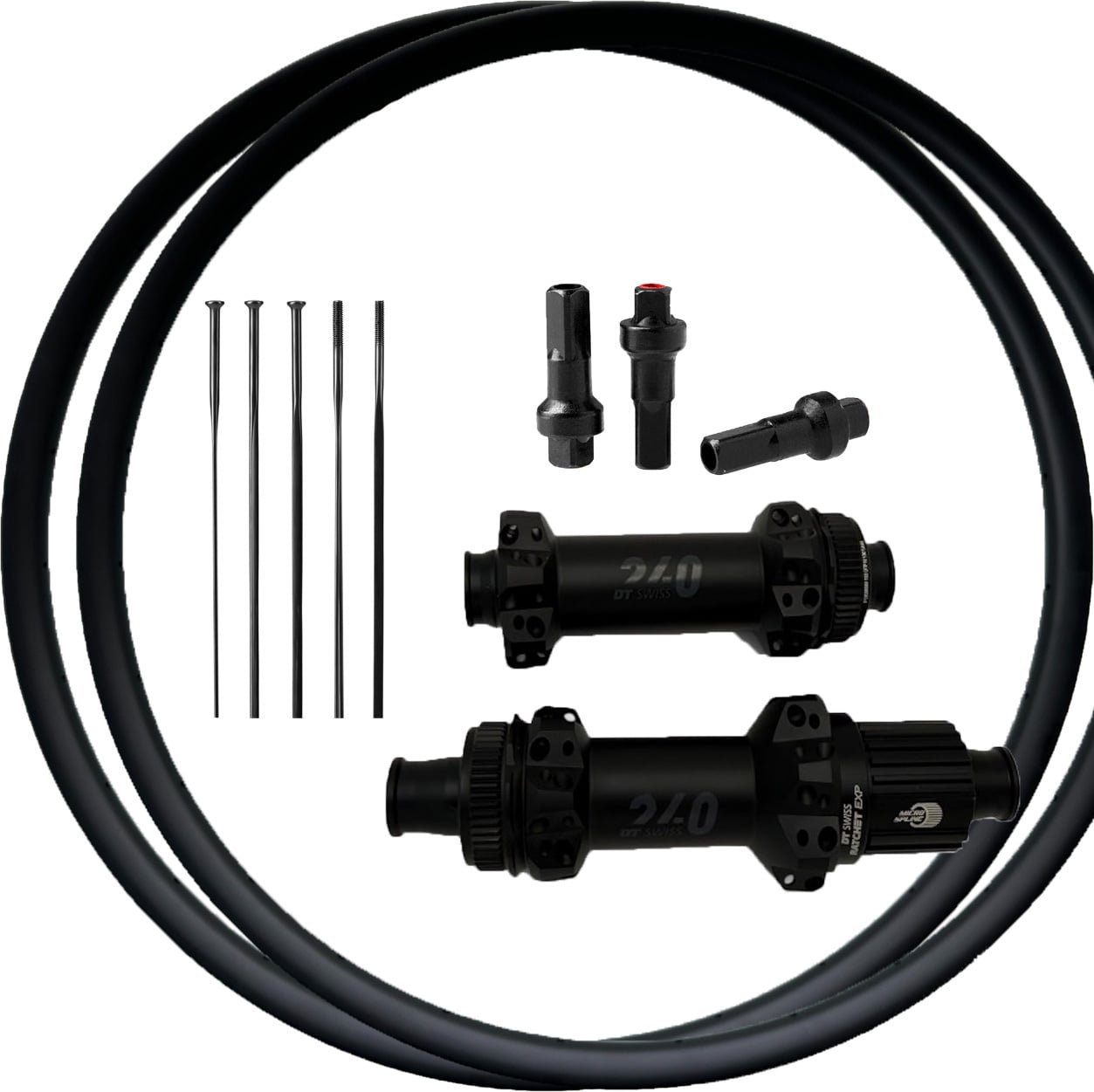

KIT CONTENTS
Rims
- 2x H25-W35 29ER Carbon Rim
- 28H
- 25 mm depth
- 35 mm external
- 29 mm internal
- Approx. 380 g each
- Hookless
- Tubeless Ready
- NSD 589 mm
Hubs
- 1x DT Swiss 240 Boost Straight Pull front hub
- 1x DT Swiss 240 Boost Straight Pull rear hub
- 28H
- 15x110 / 12x148 Boost
- Selected freehub/brake interface depending on version
Spokes
- 28x Alpina Ultralite Aero Straight Pull – 292 mm
- 28x Alpina Ultralite Aero Straight Pull – 290 mm
- 56 spokes total
Nipples
- 56x Alpina Aluminium Double Square Black ABT nipples
EXPECTED WHEELSET WEIGHT
Complete built wheelset:
approximately 1,350 grams
Actual weight may vary depending on the selected freehub and brake interface and normal manufacturing tolerances.
IDEAL FOR
- XC racing
- Marathon MTB
- Lightweight trail bikes
- High-end custom MTB builds
- Professional wheelbuilders
- OEM wheel projects
- Riders looking for a lightweight wide 29er wheelset
IMPORTANT
This product is a DIY wheelbuilding kit.
The wheels are supplied as separate components and are not pre-built. Correct and even spoke tension is essential, so professional wheelbuilding is recommended.
SPECIFICATIONS
Use: MTB / XC / Marathon
Wheel size: 29"
Rim: H25-W35 Carbon
Rim depth: 25 mm
External width: 35 mm
Internal width: 29 mm
Rim weight: ±380 g
Construction: Asymmetric
Offset: 3.85 mm
Hookless: Yes
Tubeless Ready: Yes
NSD: 589 mm
Spoke holes: 28 front / 28 rear
Hubs: DT Swiss 240 Boost Straight Pull
Front axle: 15x110 mm Boost
Rear axle: 12x148 mm Boost
Freehub: Micro Spline / SRAM XD depending on version
Spokes: Alpina Ultralite Aero Straight Pull
Front spokes: 28x 292 mm
Rear spokes: 28x 290 mm
Total spokes: 56
Nipples: Alpina Aluminium Double Square ABT
Expected built weight: ±1,350 g
