Build a fast high-end aero road wheelset with this complete H60-W32 wheelbuilding kit.
The foundation is formed by our 60 mm deep H60-W32 carbon rims. With a 32 mm external width and 24 mm internal width, the rims are designed around modern wider road tyres. The deep 60 mm profile is particularly suited to riders looking for aerodynamic efficiency and the ability to maintain high speeds.
The rims are combined with the OGS Ultra Light Road Hubset. At only approximately 229 grams per pair, the hubs help keep the total wheelset weight low despite the deep carbon rims. The hubs are manufactured from AL7075 and use high-quality TPI ceramic bearings together with a 36T ratchet drive system.
The wheelset uses Alpina Ultralite Aero Straight Pull spokes. Their aerodynamic 2.0 | 0.9-2.3 | 2.0 mm profile combines low weight, stiffness and aerodynamics. They are positioned as a high-end alternative comparable to well-known aero spokes such as Sapim CX-Ray and DT Swiss Aerolite.
Black Alpina Double Square aluminium nipples with ABT Locking complete the build. The self-locking system helps maintain the set spoke tension over time.
A complete wheelset built with this configuration weighs approximately 1,440 grams, depending on freehub body and normal component production tolerances.
KEY FEATURES
• Complete DIY road disc wheelbuilding kit
• Approximately 1,440 grams when fully built
• 60 mm deep carbon aero rims
• 32 mm external rim width
• 24 mm internal rim width
• Tubeless Ready
• 24 spoke holes front and rear
• OGS Ultra Light Road Hubset
• Approximately 229 grams per hubset
• TPI ceramic bearings
• 36T ratchet drive system
• Alpina Ultralite Aero Straight Pull spokes
• 48 spokes total
• Alpina Double Square aluminium nipples
• ABT self-locking system
• Optimal spoke lengths already calculated
• Multiple freehub options available
• Designed for high-end road wheelbuilding
60 MM AERODYNAMIC CARBON PROFILE
The H60-W32 is built for speed.
A 60 mm deep rim reduces aerodynamic drag at higher speeds and helps maintain momentum on flat and rolling roads.
Particularly suitable for:
• Road racing
• Triathlon
• Fast group rides
• Flat courses
• Rolling terrain
• Aero road bikes
• Riders maintaining high average speeds

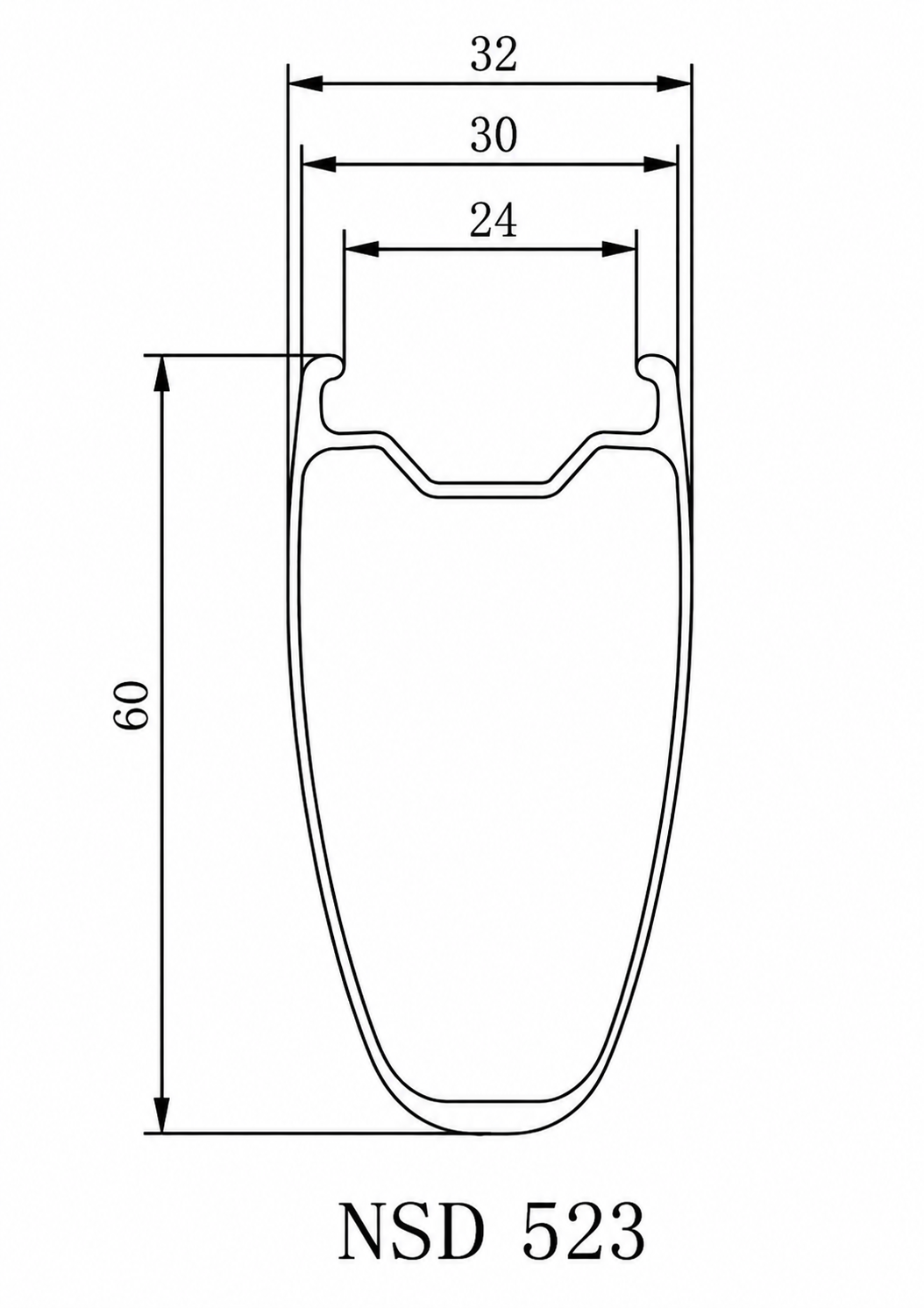

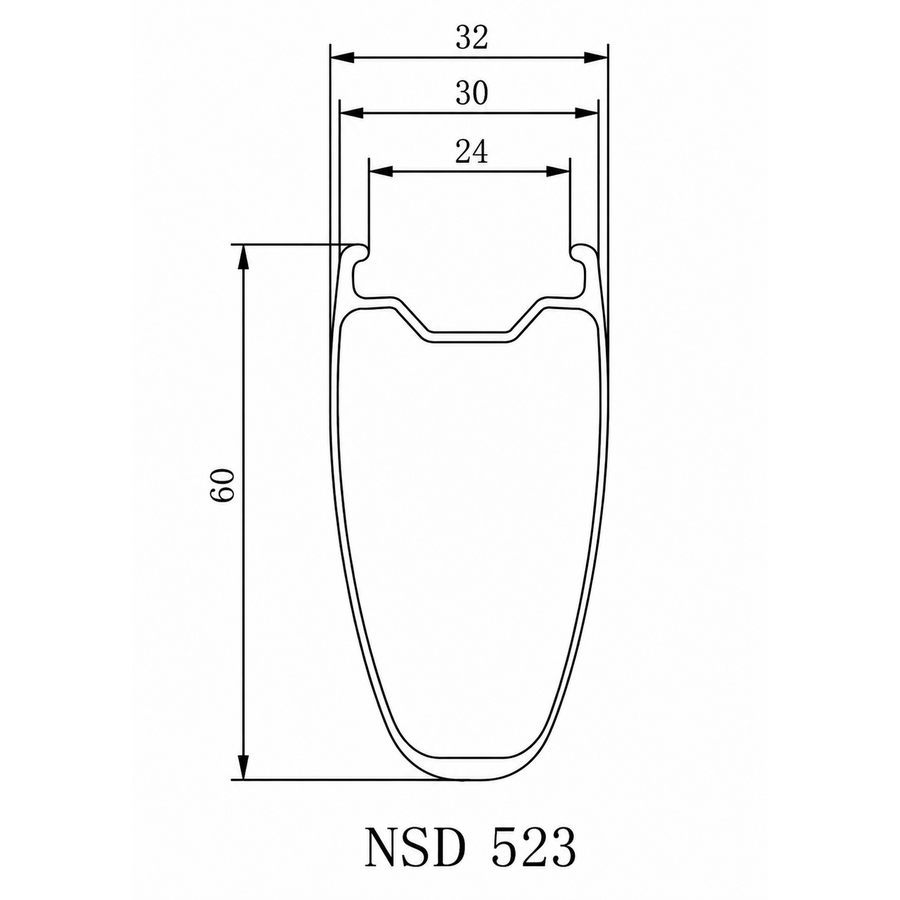

H60-W32 CARBON RIMS
Specifications per rim:
• Material: Carbon
• Wheel size: 700C
• Rim depth: 60 mm
• External width: 32 mm
• Internal width: 24 mm
• Weight: approximately 470 grams
• Weight tolerance: +/-15 grams
• Spoke holes: 24H
• Tubeless Ready: Yes
• Construction: Symmetrical
• Finish: Matt Black UD
• NSD: 523 mm
24 MM INTERNAL WIDTH
The 24 mm internal rim width is well suited to modern wider road tyres.
Benefits include:
• Improved support for wider tyres
• More stable tyre shape
• Better cornering control
• Ability to run lower tyre pressures
• Increased comfort
• Good tyre-to-rim integration

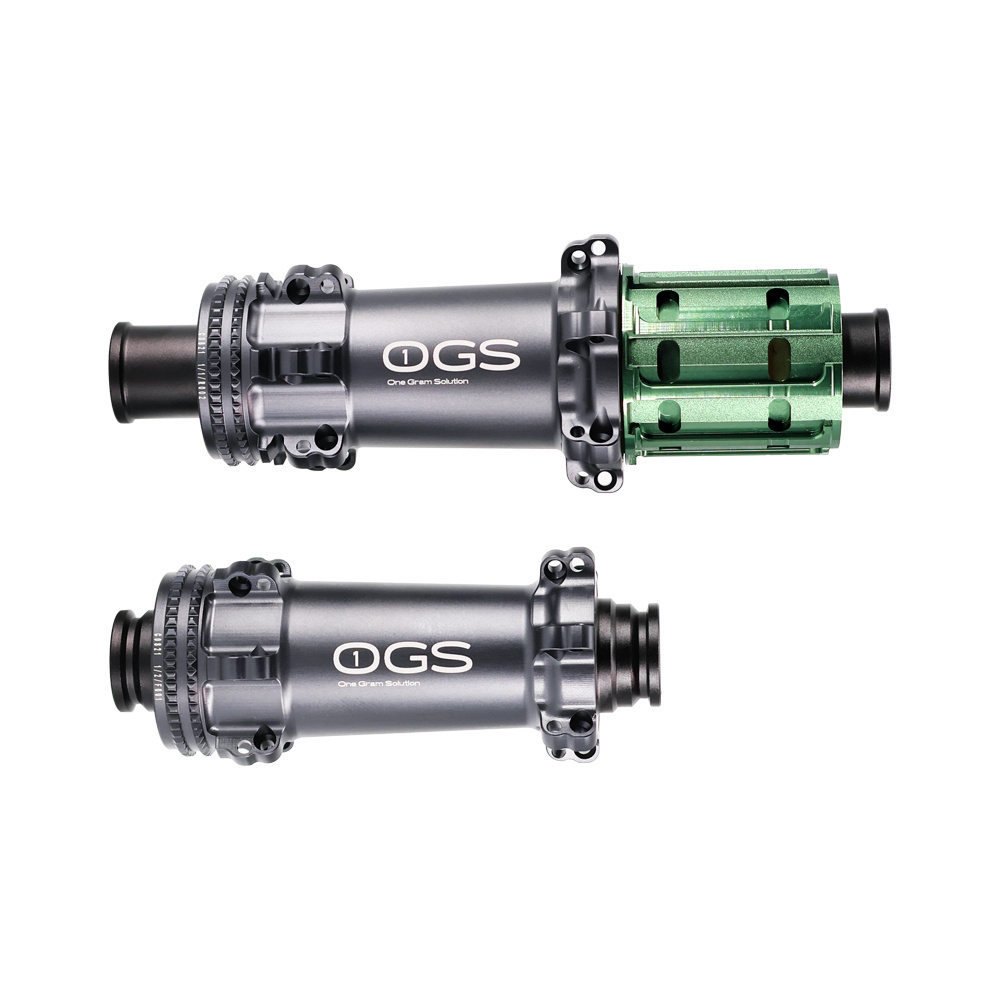

OGS ULTRA LIGHT ROAD HUBSET
Specifications:
• Hubset weight: approximately 229 grams
• Hub shell: AL7075
• Freehub and axle: AL7075
• Front axle: 12x100 mm
• Rear axle: 12x142 mm
• Front hub: 24H
• Rear hub: 24H
• Bearings: TPI Ceramic
• Front bearings: 2x 6802
• Rear bearings: 3x 6802 + 1x 15267
• Drive system: 36T PG Ratchet
36T RATCHET SYSTEM
The rear hub uses a 36T ratchet system for quick engagement when accelerating out of corners, sprinting or applying power after coasting.
TPI CERAMIC BEARINGS
The OGS Ultra Light hubs use high-quality TPI ceramic bearings for smooth running and low resistance.

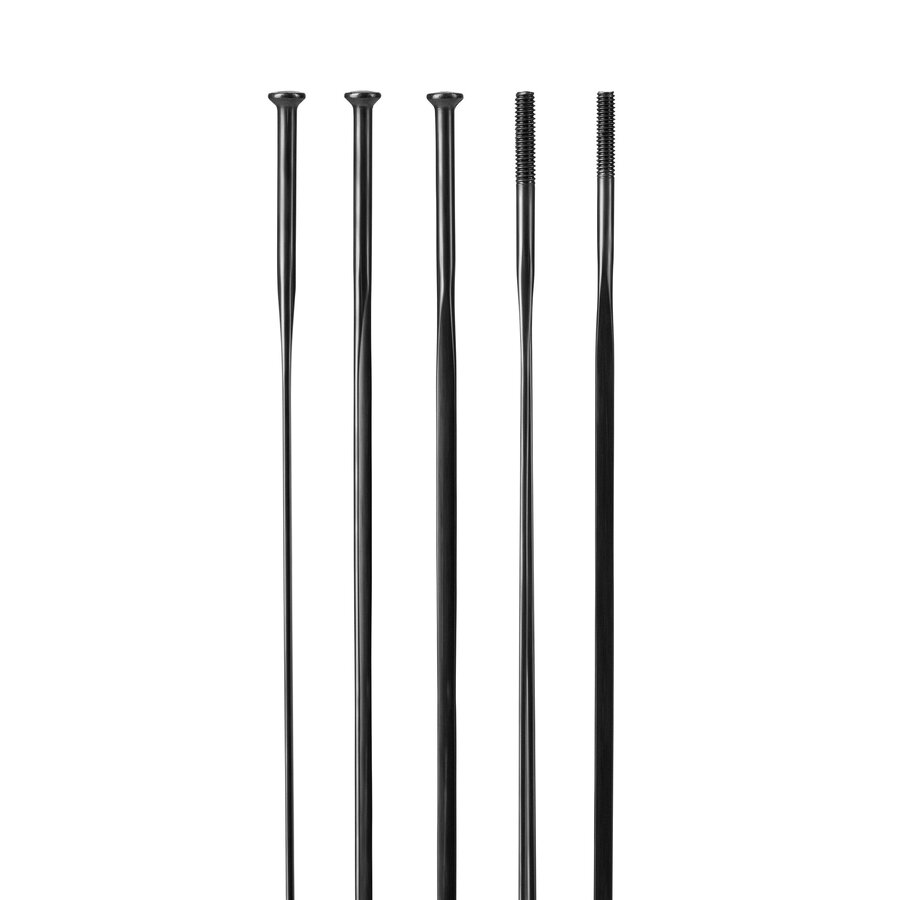

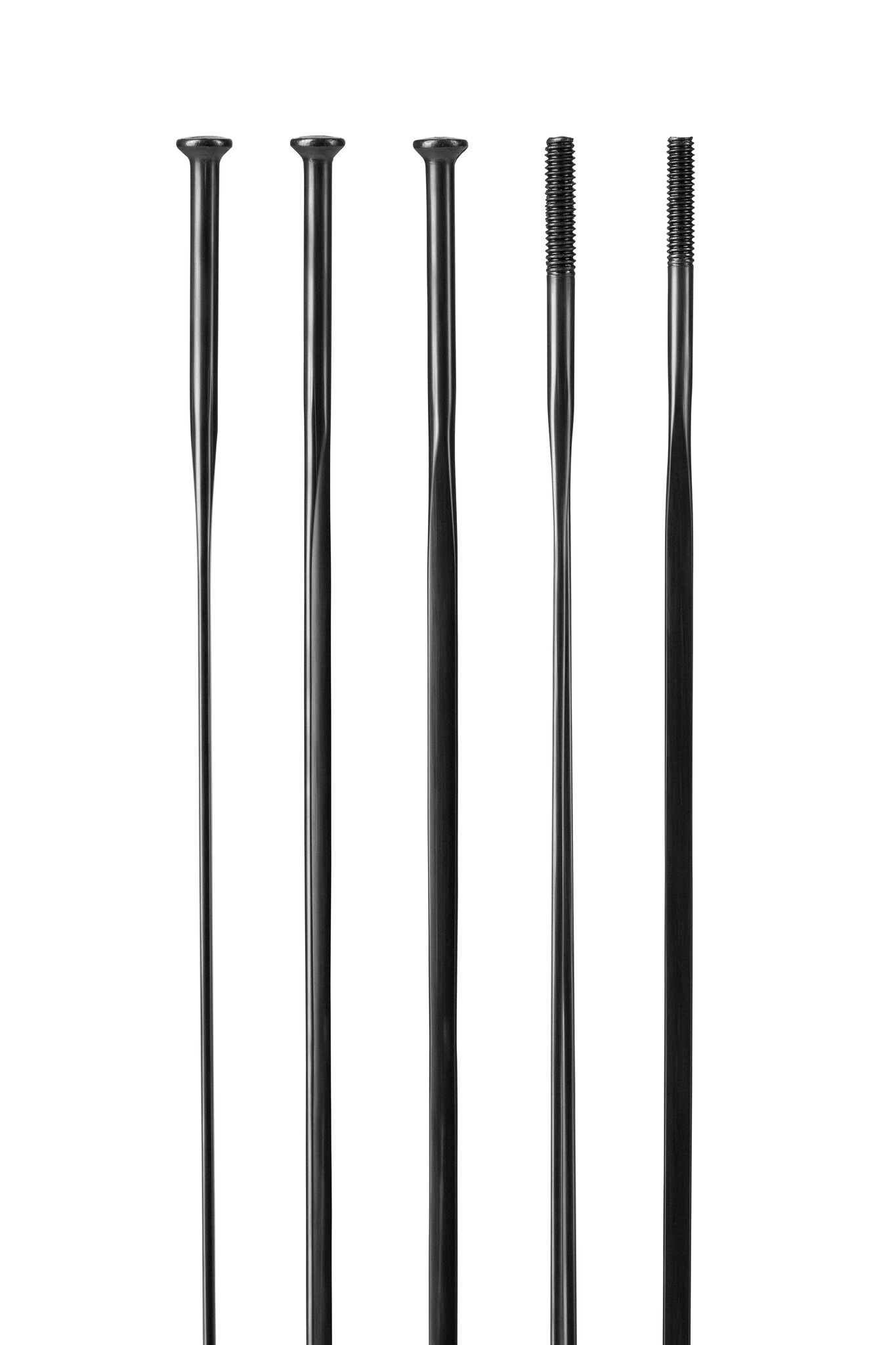

ALPINA ULTRALITE AERO STRAIGHT PULL SPOKES
Spoke profile:
2.0 | 0.9-2.3 | 2.0 mm
Features:
• Straight Pull
• Aerodynamic bladed profile
• Low weight
• Approximately 4.2 grams at 260 mm
• Designed for high-end road wheels
• Comparable to Sapim CX-Ray and DT Swiss Aerolite
• 24 spokes front 12x260 / 12x262
• 24 spokes rear 12x260 / 12x262
• 48 spokes total
PRE-CALCULATED SPOKE LENGTHS
The required spoke lengths have already been calculated specifically for the combination of:
• H60-W32 carbon rims
• 523 mm NSD
• OGS Ultra Light Road front hub
• OGS Ultra Light Road rear hub
• Alpina Ultralite Aero Straight Pull spokes
The correct lengths for each wheel position are supplied with the kit.
This saves the wheelbuilder from having to calculate the complete hub and rim geometry again.

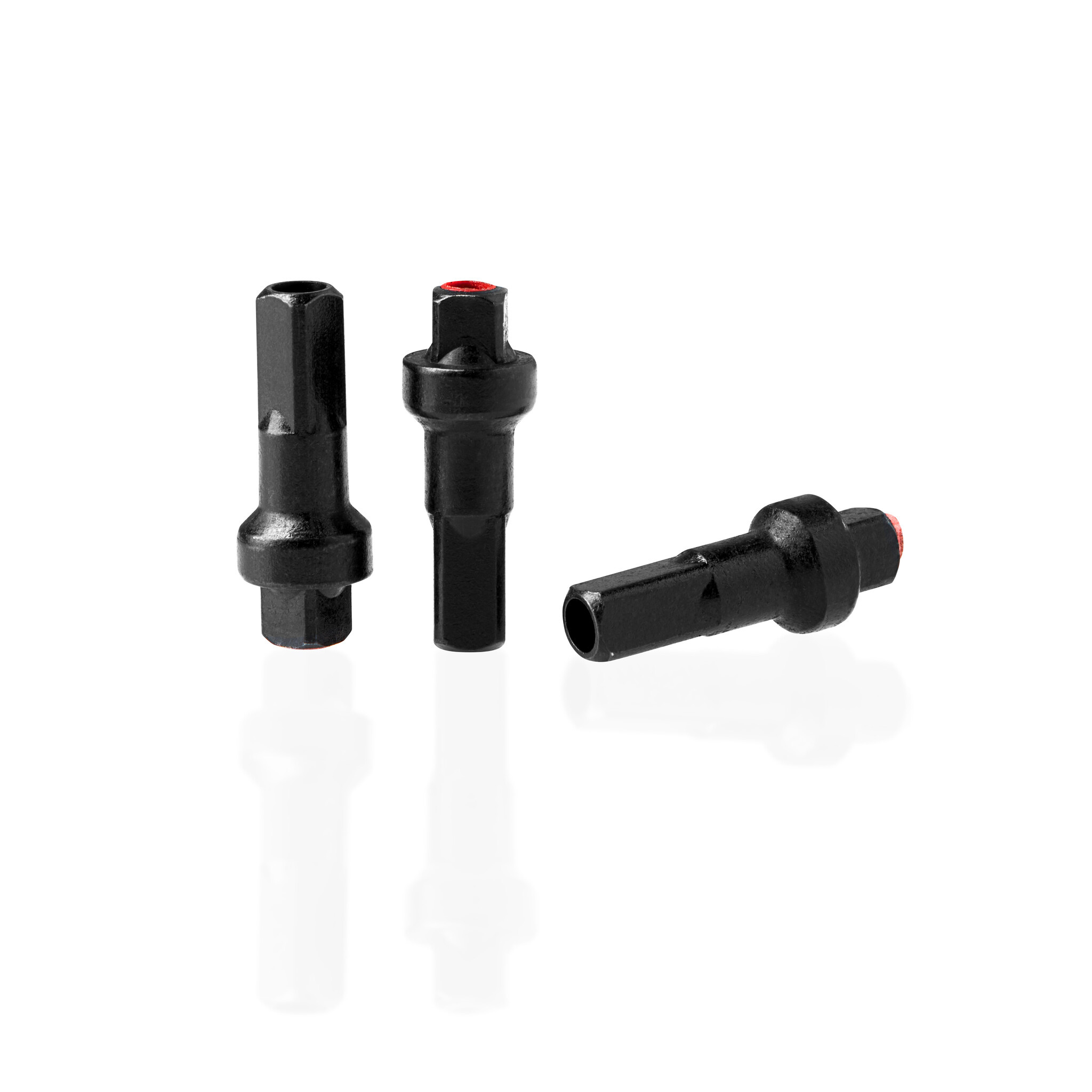

ALPINA DOUBLE SQUARE ABT NIPPLES
The kit includes black Alpina aluminium Double Square nipples.
Features:
• Aluminium
• Black finish
• 14G
• Double Square
• ABT Locking
• Self-locking
The ABT system helps prevent unwanted nipple loosening and supports stable spoke tension.
FREEHUB OPTIONS
Depending on selected version, the OGS rear hub is available with:
• Shimano HG
• SRAM XDR
• MSR
• Campagnolo N3W

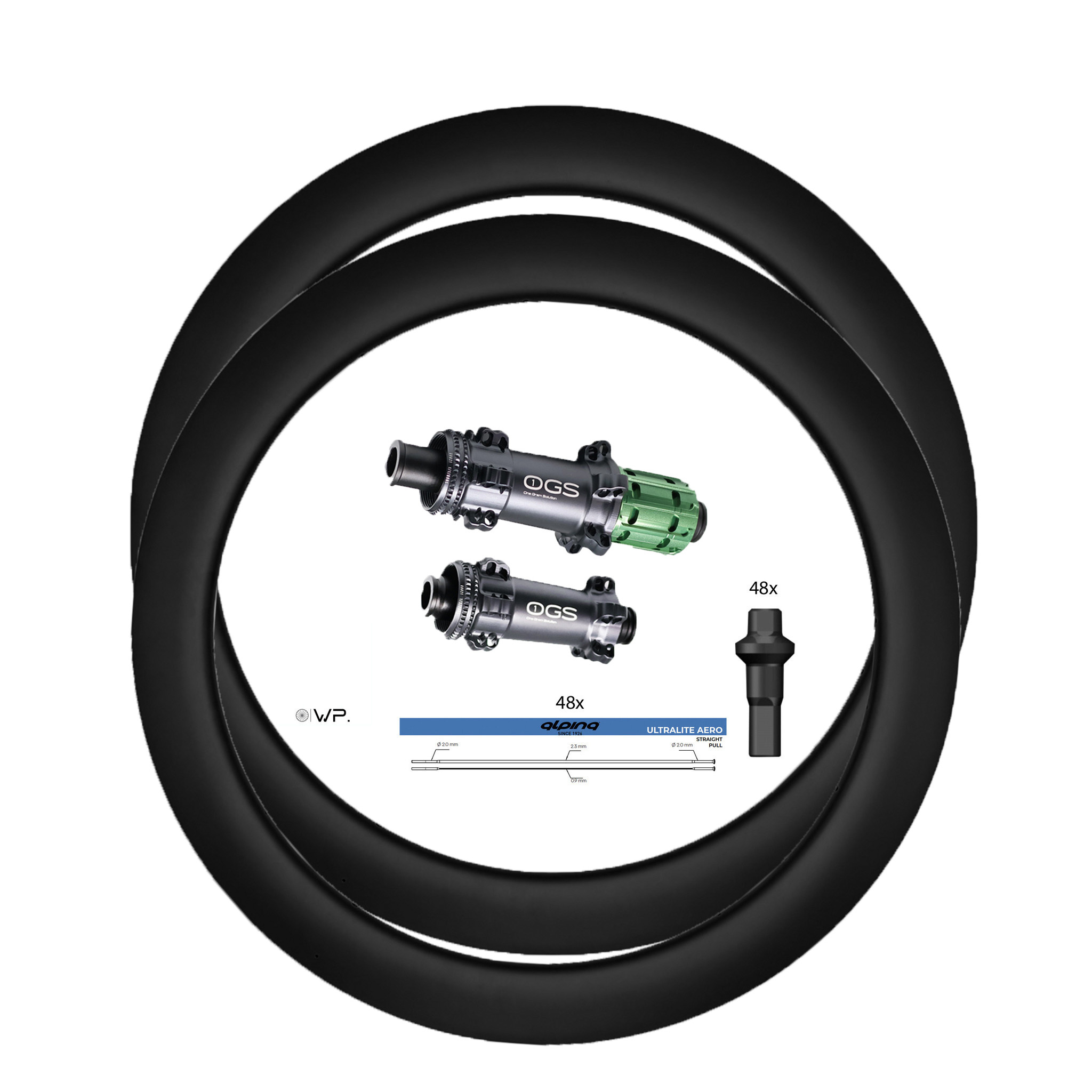

KIT CONTENTS
Rims
• 2x H60-W32 Carbon Road Disc Brake rim
• 60 mm depth
• 32 mm external
• 24 mm internal
• 24H
• Approximately 470 grams each
• Tubeless Ready
• Matt Black UD
• NSD 523 mm
Hubs
• 1x OGS Ultra Light Road front hub
• 1x OGS Ultra Light Road rear hub
• Approximately 229 grams per set
• TPI ceramic bearings
• 36T ratchet
• 12x100 / 12x142 mm
Spokes
• 48x Alpina Ultralite Aero Straight Pull spokes
• 24 front
• 24 rear
• Correct calculated spoke lengths included
Nipples
• 48x Alpina Aluminium Double Square ABT nipples
TOTAL WEIGHT
Complete built wheelset:
approximately 1,440 grams
Actual weight may vary slightly depending on the selected freehub body and production tolerances.
WHO IS THIS KIT FOR?
• Professional wheelbuilders
• Experienced custom wheelbuilders
• Wheel brands
• OEM customers
• Competitive road riders
• Triathletes
• Riders looking for a deep aero wheelset
• Customers building a premium custom road wheelset
IMPORTANT
This product is a DIY wheelbuilding kit.
The wheels are not supplied pre-built.
For maximum performance and durability, we recommend having the wheelset built by an experienced wheelbuilder. Correct and even spoke tension is essential.
SPECIFICATIONS
Use: Road / Race / Triathlon
Wheel size: 700C
Brake type: Disc Brake
Rim material: Carbon
Rim depth: 60 mm
External width: 32 mm
Internal width: 24 mm
Rim weight: ±470 grams
Finish: Matt Black UD
Tubeless Ready: Yes
Construction: Symmetrical
NSD: 523 mm
Spoke holes: 24 front / 24 rear
Spokes: Alpina Ultralite Aero Straight Pull
Spoke profile: 2.0 | 0.9-2.3 | 2.0 mm
Spoke quantity: 48
Nipples: Alpina Aluminium Double Square ABT
Hubs: OGS Ultra Light Road
Hubset weight: ±229 grams
Bearings: TPI Ceramic
Ratchet: 36T
Front axle: 12x100 mm
Rear axle: 12x142 mm
Freehub: Shimano HG / SRAM XDR / MSR / Campagnolo N3W
Complete wheelset weight: ±1,440 grams
FAQ
How much does the complete wheelset weigh?
Approximately 1,440 grams depending on freehub and production tolerances.
Are the spoke lengths already calculated?
Yes. The correct spoke lengths for this exact rim and hub combination are supplied.
How many spokes are included?
48 Alpina Ultralite Aero Straight Pull spokes: 24 front and 24 rear.
Which bearings are used?
TPI ceramic bearings.
Which drive system does the rear hub use?
A 36T PG Ratchet system.
Which nipples are supplied?
Black Alpina Aluminium Double Square 14G nipples with ABT Locking.
Are the rims Tubeless Ready?
Yes.
Are the wheels supplied built?
No. This is a complete DIY wheelbuilding kit.
