Formula FH-117 Freehub Body (including end cap)

The Formula FH-117 Freehub Body is a genuine OEM part, supplied including the end cap.
It is used on a range of Giant, Cannondale, and COMMENCAL bikes and designed for 11-speed Shimano and SRAM cassettes (not XDR).
Compatible with 12 mm thru-axles, it features sealed cartridge bearings for smooth and durable performance.

Compatibility

Giant:

• Defy Advanced (2017–2019)

• TCR Advanced Disc (2017–2019)

• Revolt Advanced 2 (2019)

• Anyroad Advanced (2019)

• Fastroad Advanced (2019)

• TCX Advanced & SLR series (2017–2020)

• Road E+ series (2019)

• Avail Advanced (2017–2019)

• Propel Advanced 2 Disc (2019)

Cannondale:

• Synapse Carbon Disc SE Apex 1 (2018)

• Synapse Carbon Disc 105 (2018)

• Women’s Synapse Carbon Disc SE Apex 1 (2018)

• Slate SE Force 1 / Apex 1 (2018)

• SuperX Apex 1 (2018)

COMMENCAL:

• CLASH ORIGIN (2019)

• META HT AM ORIGIN (2019)

• META HT AM ESSENTIAL (2019)

• META TR V4.2 (2019)

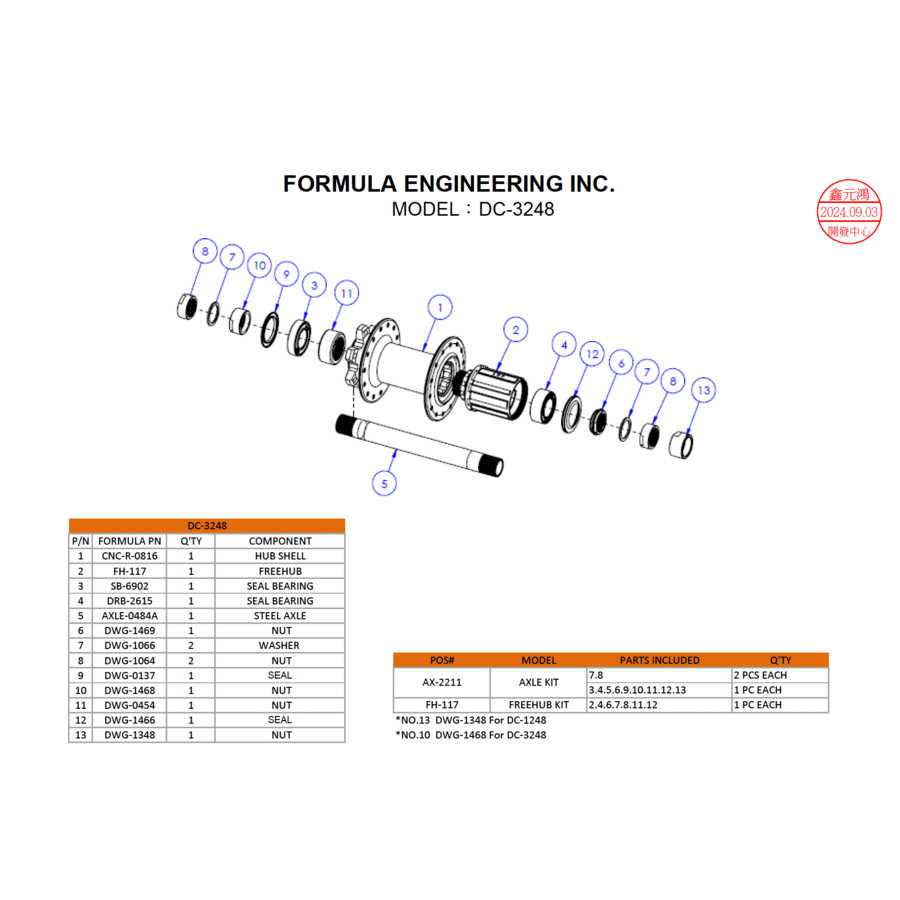

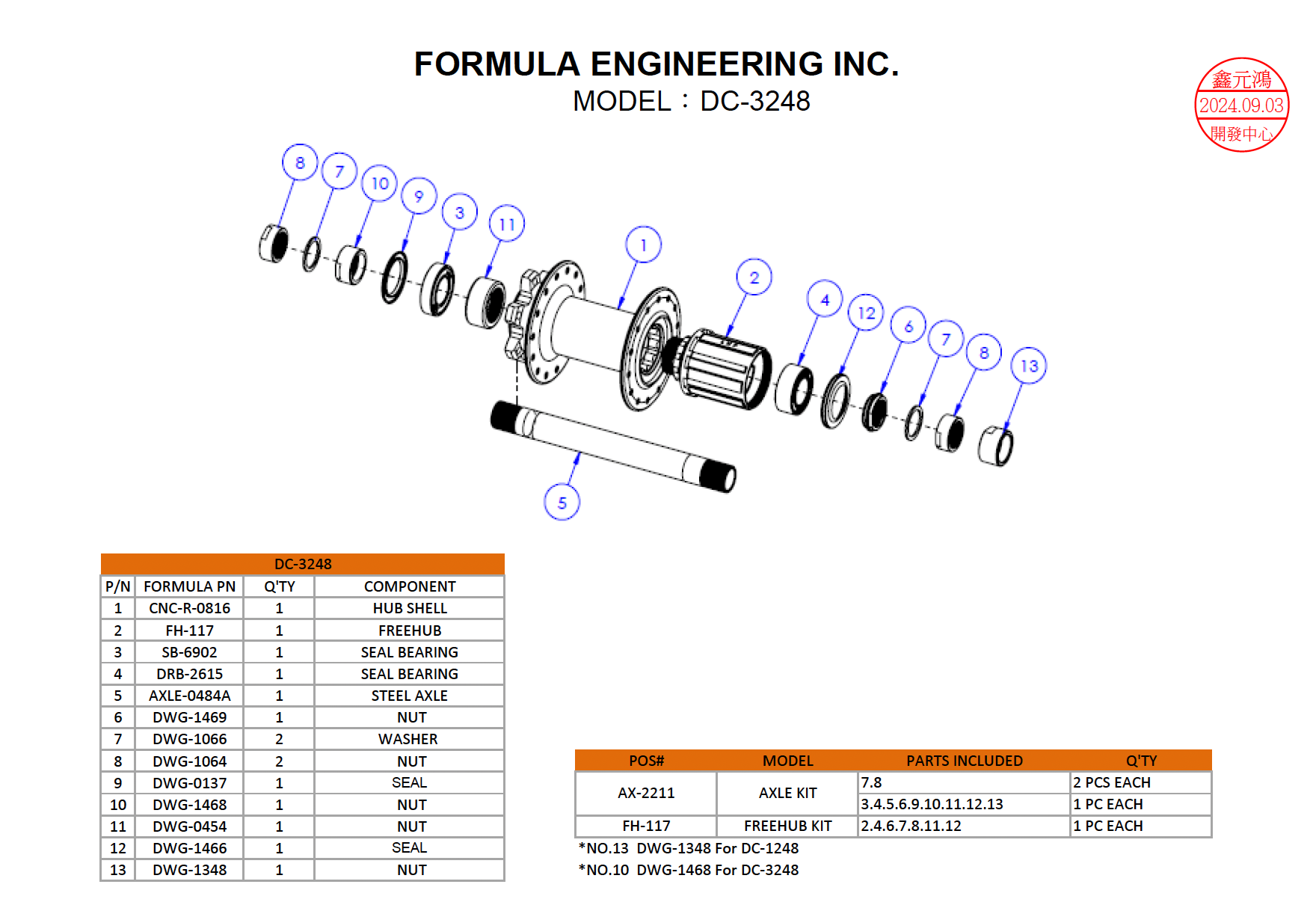

Originally fitted on Formula DC-1248 hubs.

Specifications

• Model: FH-117

• Compatible with: 11-speed Shimano / SRAM (not XDR)

• Axle: 12 mm thru-axle

• Bearings: sealed cartridge type

• Includes: end cap

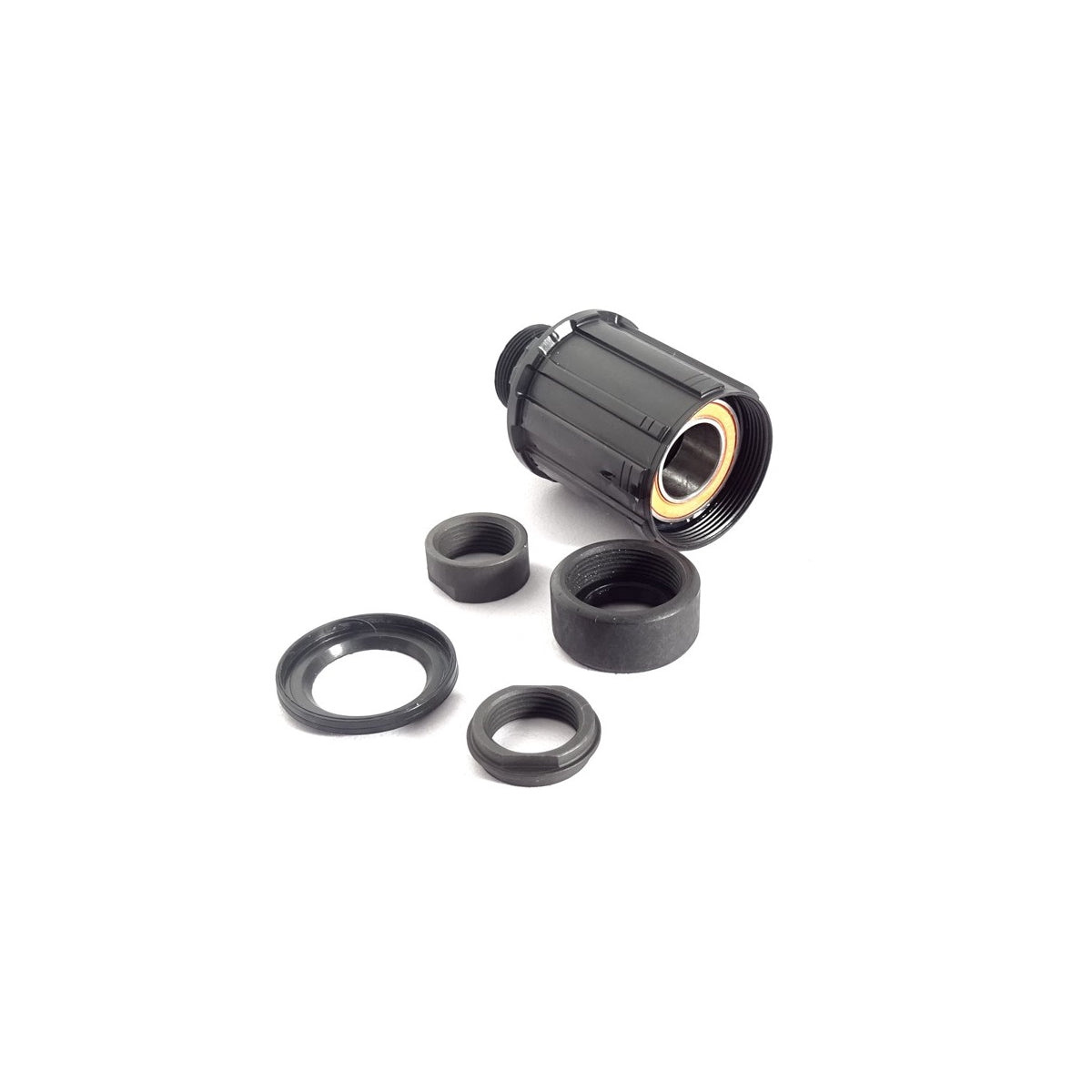

Package contents

• Freehub body FH-117 ×1

• Bearing (right) DRB-2615 ×1

• End nut (right) DWG-1064 ×1

• Seal (right) DWG-1466 ×1

• Pawl carrier nut DWG-0454 ×1

• Inner nut (right) DWG-1469 ×1

• Washer (right) DWG-1066 ×1

Note

Compatibility may vary depending on hub and wheel configuration.
Always verify with your manufacturer or local dealer before installation.
