Gravel Disc Brake H36-W32 Carbon Rim

Delivery time Order before 15:00 is shipped same business day

in stock

Image 1 / 5

thumb-Gravel Disc Brake H36-W32 Carbon Rim-3

thumb-Gravel Disc Brake H36-W32 Carbon Rim-4

thumb-Gravel Disc Brake H36-W32 Carbon Rim-5

Gravel Disc Brake H36-W32 Carbon Rim

in stock

Delivery time Order before 15:00 is shipped same business day

380 gram gravel carbon rim
24 & 28 spoke holes

Article code FS36/32GH-700C 24H

€189,25

(€228,99 Incl. tax)

Article code FS36/32GH-700C 24H

Order before 15.00, same day shipped

Prices included & without VAT

Order before 15.00, same day shipped

Prices included & without VAT

Description

TIP! Order per 10 (full box) for better price!

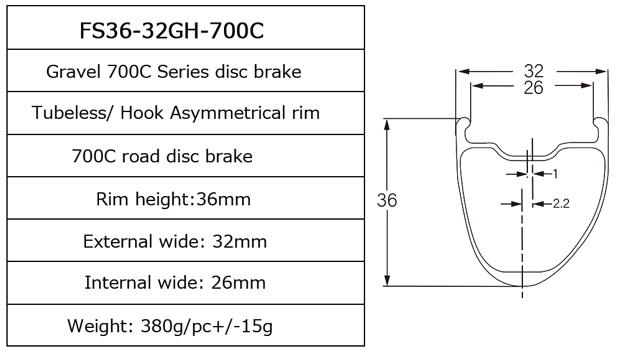

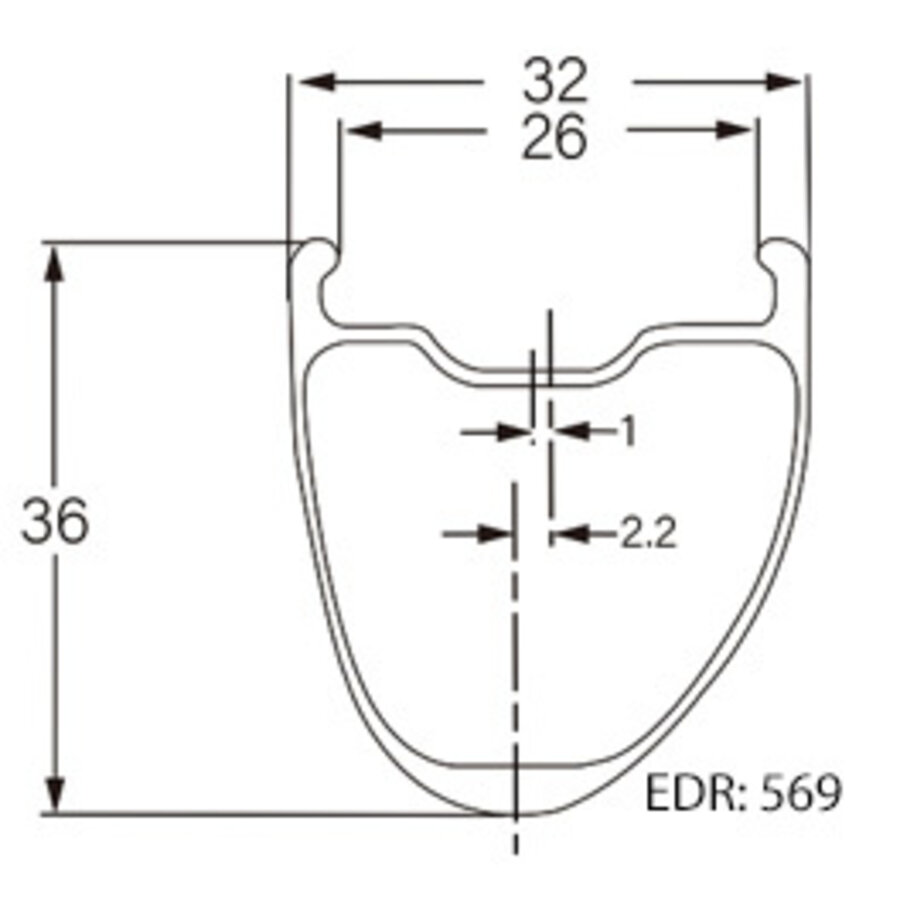

Spoke holes	24 Spoke holes
Weight	380g (+/- 15g)
Rim height	36 mm
External wide	32 mm
Internal wide	26 mm
Use	Gravel
Finish	UD Matt
Production
	Tubeless Ready / Asymmetrical
Offset	2.5mm
Max Spoke tension	130kgf

"Recommended spoke length by spokecalc.io:"

Hubset:	OGS Super Light Gravel Hubset, 24H
Lacing:	24H, 2 cross

Nipple:	REGULAR NIPPLES – NSD + 2mm (571mm)
Front left	283.77mm
Front right	283.33mm
Rear left	284.26mm
Rear right	282.51mm


Nipple:	DSN NIPPLES – NSD + 4mm (573mm)
Front left	284.76mm
Front right	284.32mm
Rear left	285.25mm
Rear right	283.50mm

Specifications

Weight:	380 +/-15g
Finish:	UD MATTE
Spokeholes:	24 & 28
Height:	36 mm
Material:	Carbon
Tubeless:	Yes
Asymmetrical:	Yes
Series:
External wide:	32 mm
Inernal wide:	26 mm
ERD:	569
Ø:
Diameter Rim:	28"
Type:	Hooked
Offset:	2.5mm
